Power Factor Correction System (PFC)
Client Requirements
Our client, a leading engineering firm, approached us with the need to improve the energy efficiency of their renewable clients’ electrical infrastructure. The primary objective was to correct the low power factor in the facility, which was leading to increased energy costs and potential penalties from the utility.
Proposed Solution

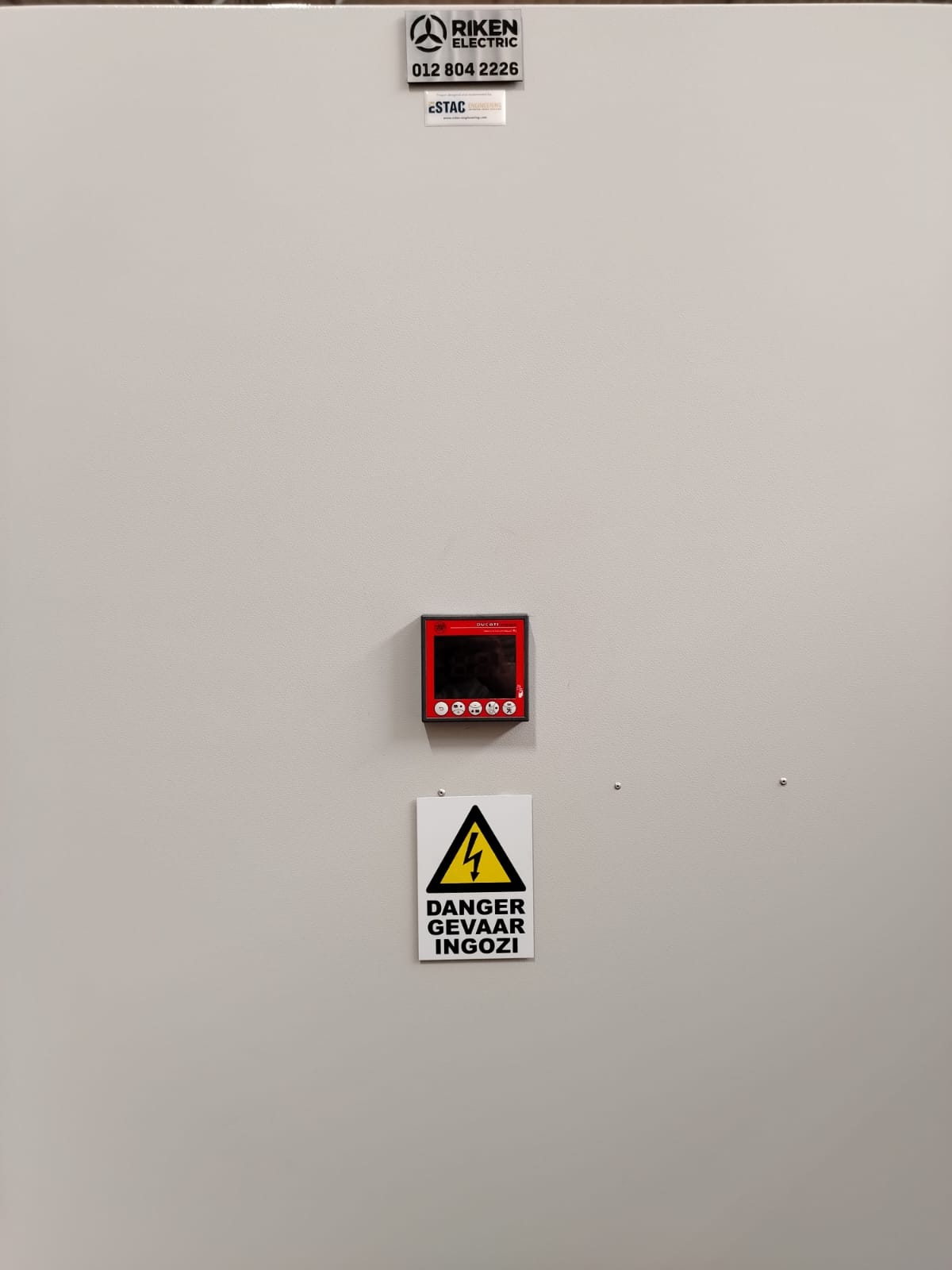

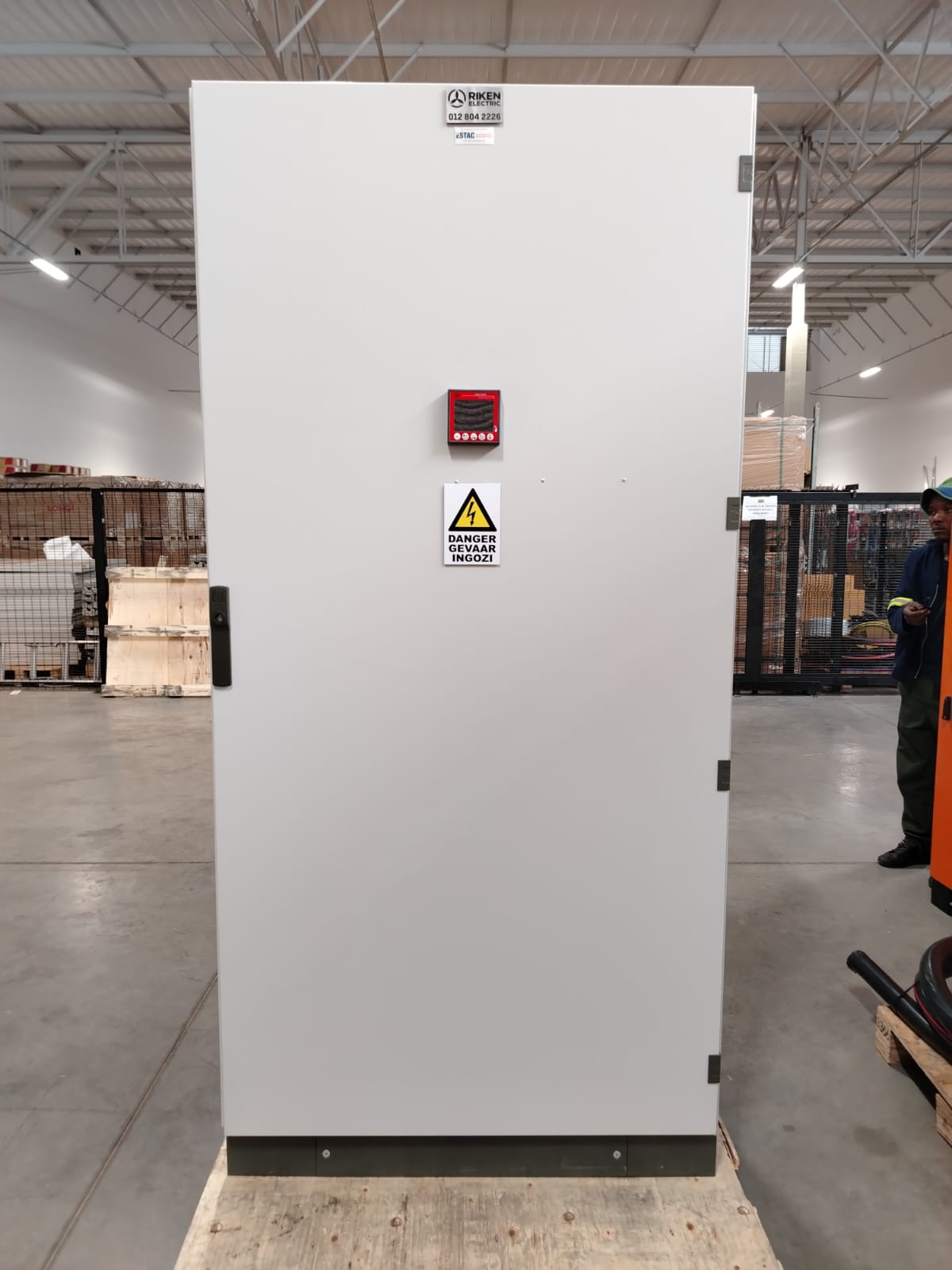

To address these challenges, it was proposed to implement a 250 kVAR Power Factor Correction (PFC) system with integrated internal harmonic suppression tailored to the specific needs of the client’s facility.
Key Features of the Solution:
Power Factor Correction (PFC):
We selected a 250 kVAR PFC system to provide optimal correction for the client’s power factor issues. This system introduces capacitive reactance to offset the inductive loads, bringing the power factor closer to unity (1.0). This results in reduced energy losses, lower demand charges, and improved voltage stability across the facility.
Internal Harmonic Suppression:

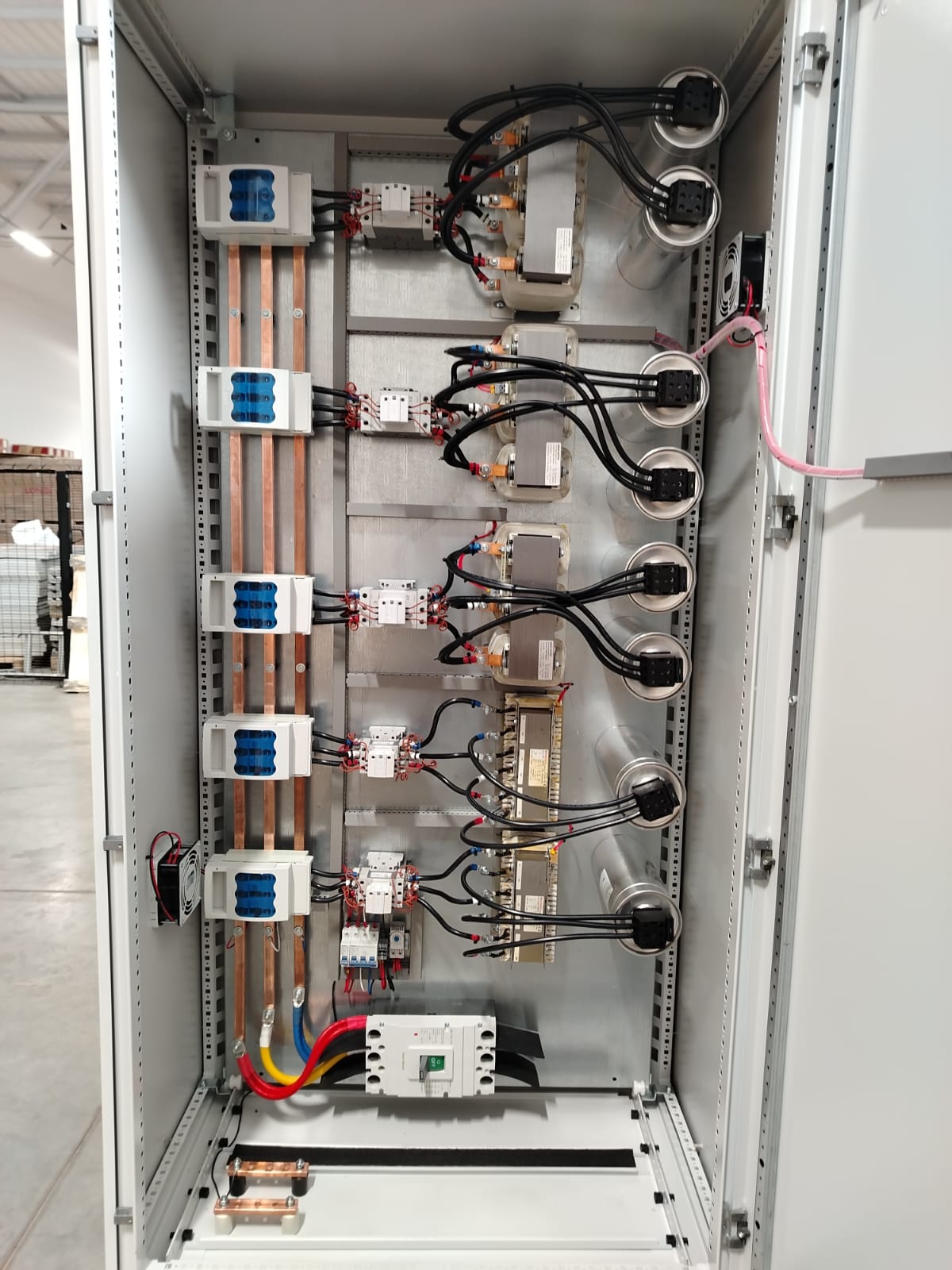

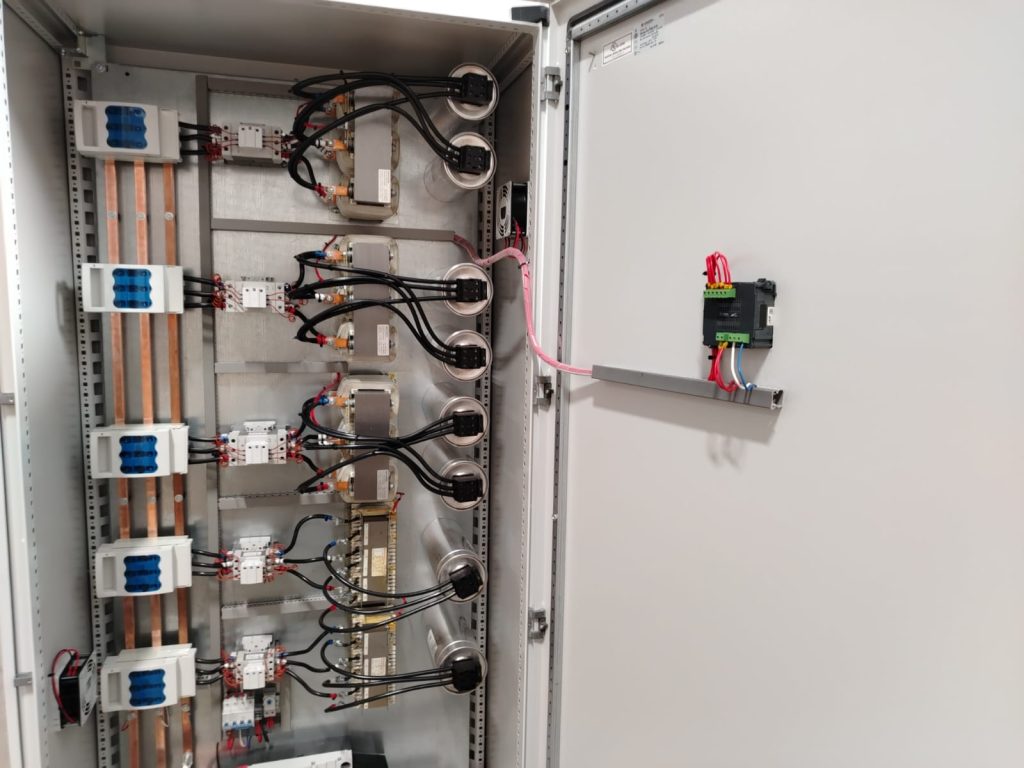

Detuned Reactors: To prevent harmonic resonance, which could otherwise cause severe damage to the system, we incorporated detuned reactors. These reactors are tuned to a frequency slightly below the most common harmonic frequencies (5th and 7th), thereby shifting the resonance point and protecting both the capacitors and other sensitive equipment.
High-Quality Capacitors: The capacitors selected for this PFC system are designed to withstand the stress of harmonic currents, ensuring long-term reliability and performance under challenging conditions.
Cost Savings:
The implementation of the 250 kVAR PFC system will lead to immediate reductions in energy costs by improving the power factor, which in turn lowers demand charges and eliminates penalties associated with poor power factor levels.
Regulatory Compliance: With harmonics kept in check, the client’s facility will remain in compliance with industry standards for power quality, avoiding potential fines and ensuring a safe operating environment.
Conclusion
The 250 kVAR Power Factor Correction system with internal harmonic suppression provides a comprehensive solution to the client’s energy efficiency and power quality challenges. This solution not only addresses immediate concerns but also offers long-term benefits in terms of cost savings, equipment protection, and regulatory compliance. We are confident that this implementation will meet and exceed the client’s expectations, delivering reliable and efficient power management for years to come.
